CLion

CLion is a JetBrains IDE for C++ that's free for individual, non-commercial development.

导入项目

CLion 可以导入项目的编译数据库文件，通常名叫 compile_commands.json。要生成这个编译数据库文件，请打开终端，切换到 Godot 根目录，然后执行：

scons compiledb=yes compile_commands.json

Then, open the Godot root directory with CLion and wait for the project to be fully indexed. If code completion, parameter information, or refactoring are not enabled, you will need to load the project with CMake. To do this, find the CMakeLists.txt file in the platform\android\java\nativeSrcsConfigs directory, right click and select Load CMake Project. Once the project reloads, a godot build configuration will be added. This configuration can be safely deleted as the CMake file will not build the project and only exists for loading the project in JetBrains IDEs.

备注

Windows Users:

For compile_commands.json to load correctly in CLion, you must first have the Visual Studio toolchain configured for CLion.

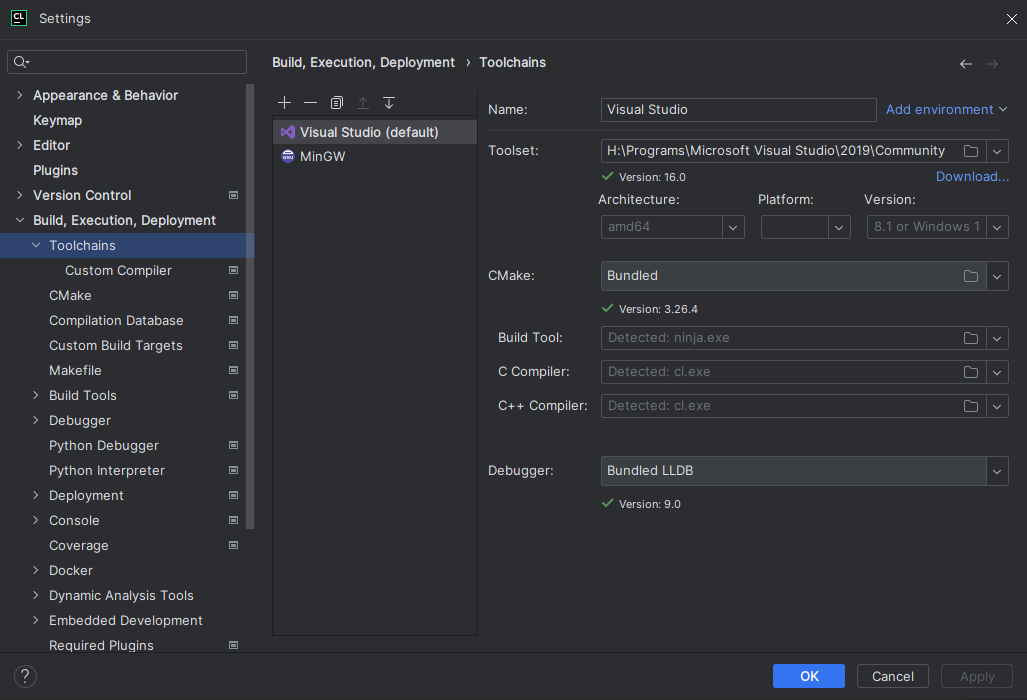

Navigate to Preferences > Build, Execution, Deployment > Toolchains

Click the + button and select Visual Studio

CLion will attempt to detect your Visual Studio installation. If it is unsuccessful, use the file icon to the right of Toolset: to select the directory with your Visual Studio installation.

You may exit and reload CLion and it will reload compile_commands.json

../../../_images/clion_visual_studio_toolchain.webp

项目的编译与调试

CLion does not support compiling and debugging Godot via SCons out of the box. This can be achieved by creating a custom build target and run configuration in CLion. Before creating a custom build target, you must compile Godot once on the command line, to generate the Godot executable. Open the terminal, change into the Godot root directory, and execute:

scons dev_build=yes

To add a custom build target that invokes SCons for compilation:

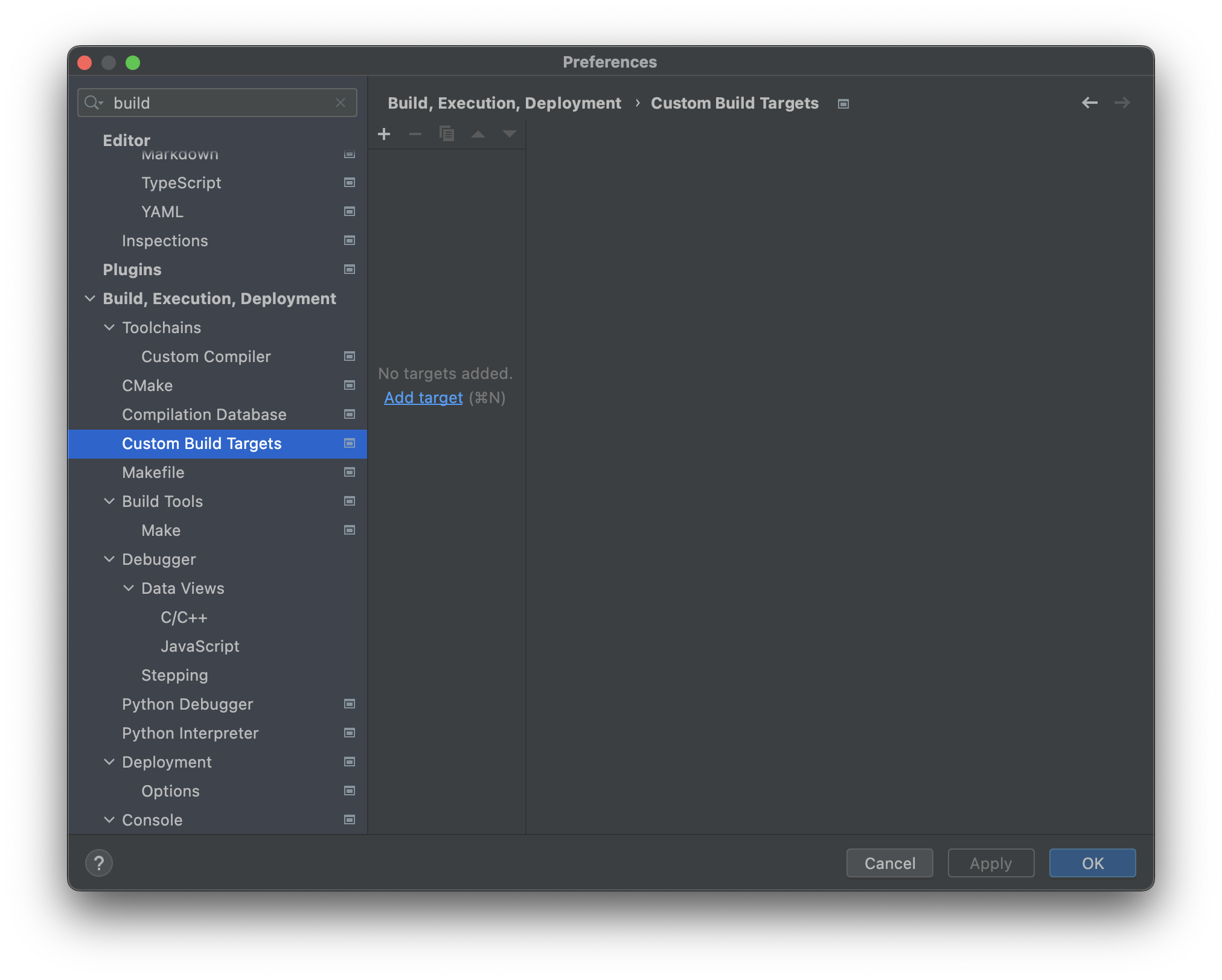

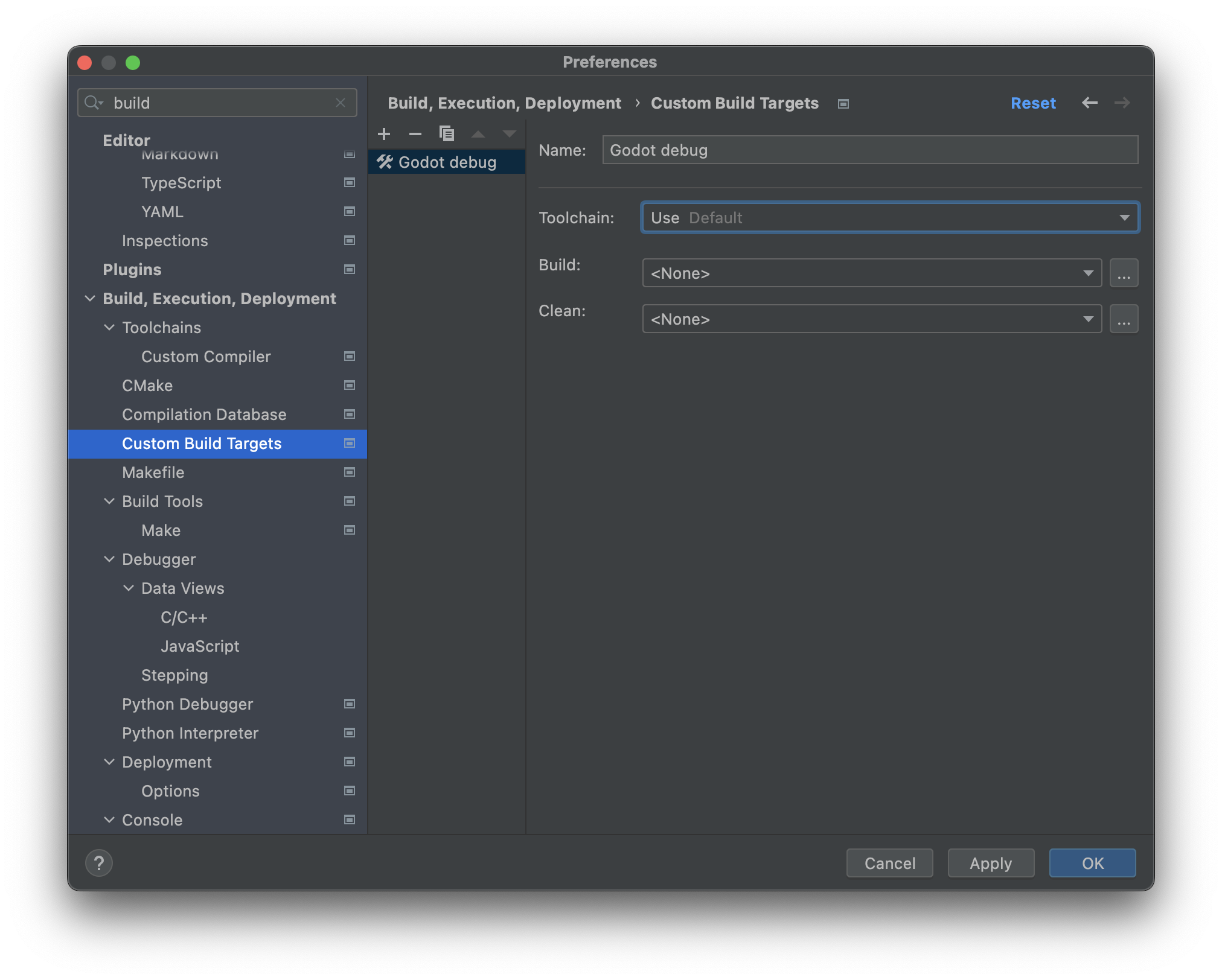

Open CLion and navigate to Preferences > Build, Execution, Deployment > Custom Build Targets

Click Add target and give the target a name, e.g. Godot debug.

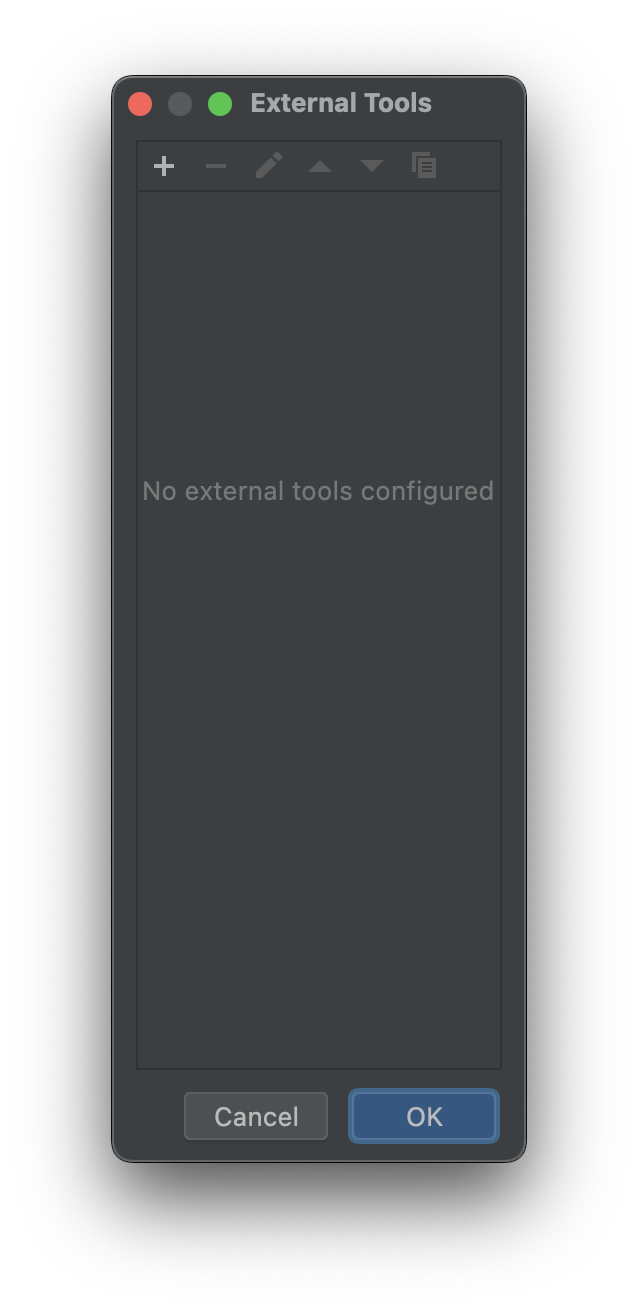

Click ... next to the Build: selectbox, then click the + button in the External Tools dialog to add a new external tool.

../../../_images/clion-external-tools.png

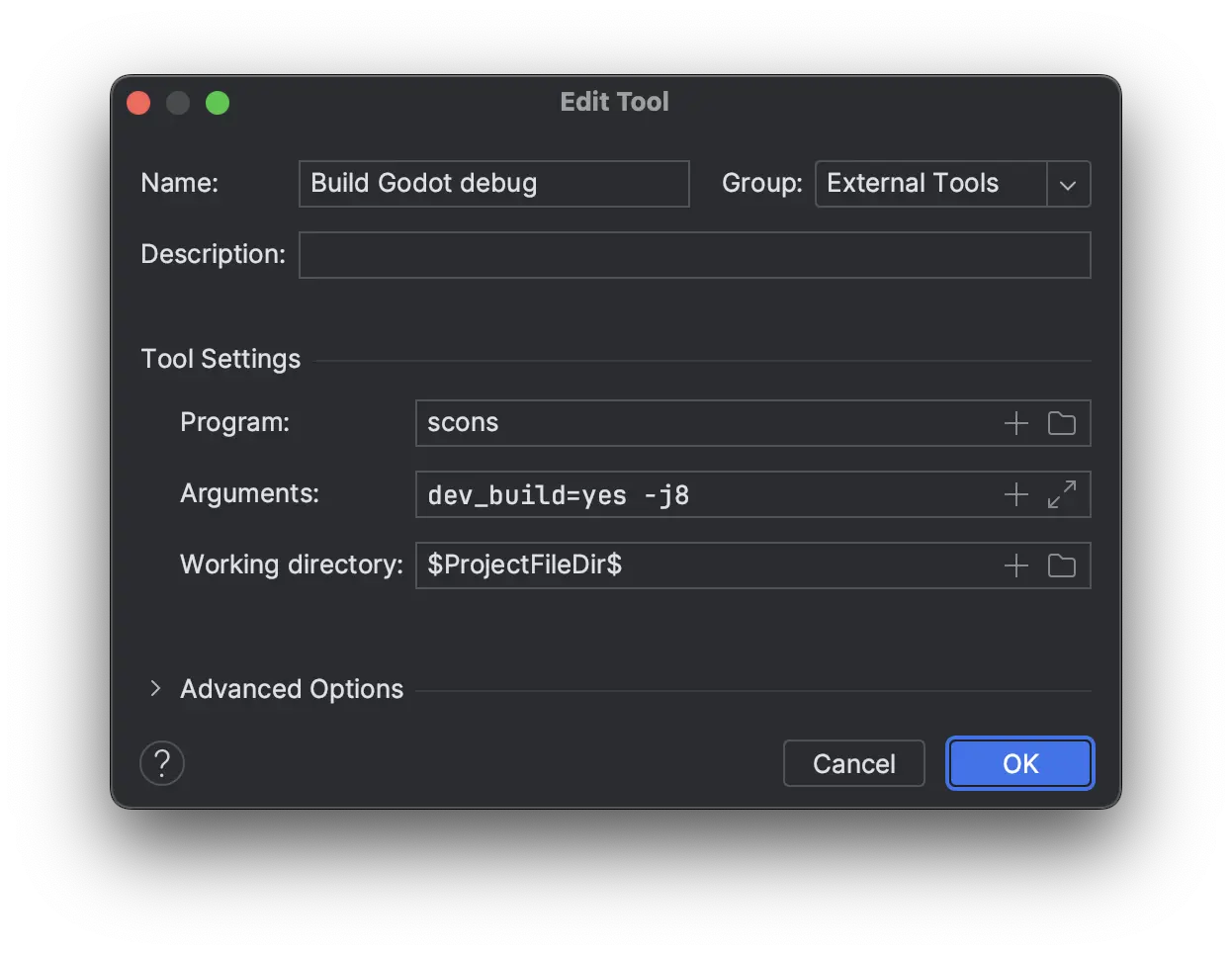

Give the tool a name, e.g. Build Godot debug, set Program to scons, set Arguments to the compilation settings you want (see compiling Godot), and set the Working directory to $ProjectFileDir$ , which equals the Godot root directory. Click OK to create the tool.

备注

CLion 不会扩展类似 scons -j$(nproc) 这样的 shell 命令。请使用具体的值，例如 scons -j8。

../../../_images/clion-create-build-tool.webp

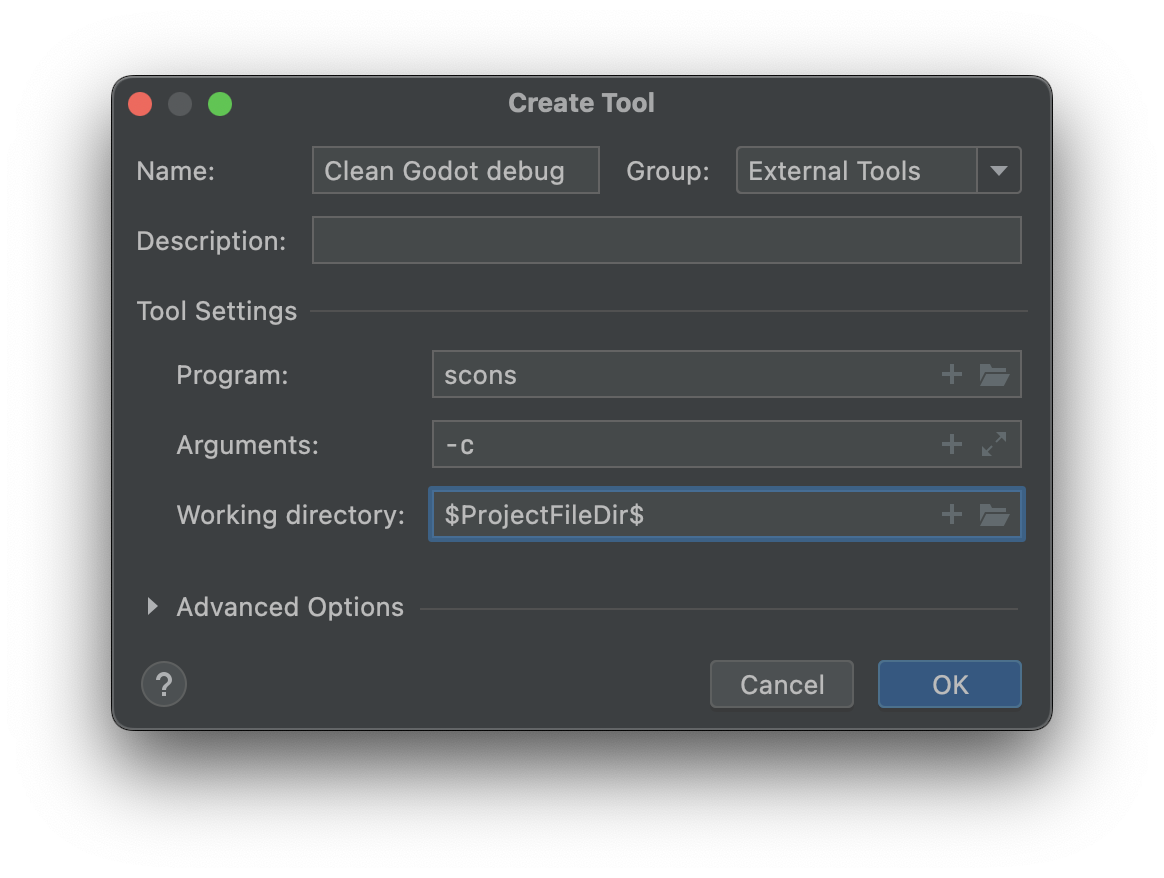

Back in the External Tools dialog, click the + again to add a second external tool for cleaning the Godot build via SCons. Give the tool a name, e.g. Clean Godot debug, set Program to scons, set Arguments to -c (which will clean the build), and set the Working directory to $ProjectFileDir$ . Click OK to create the tool.

../../../_images/clion-create-clean-tool.png

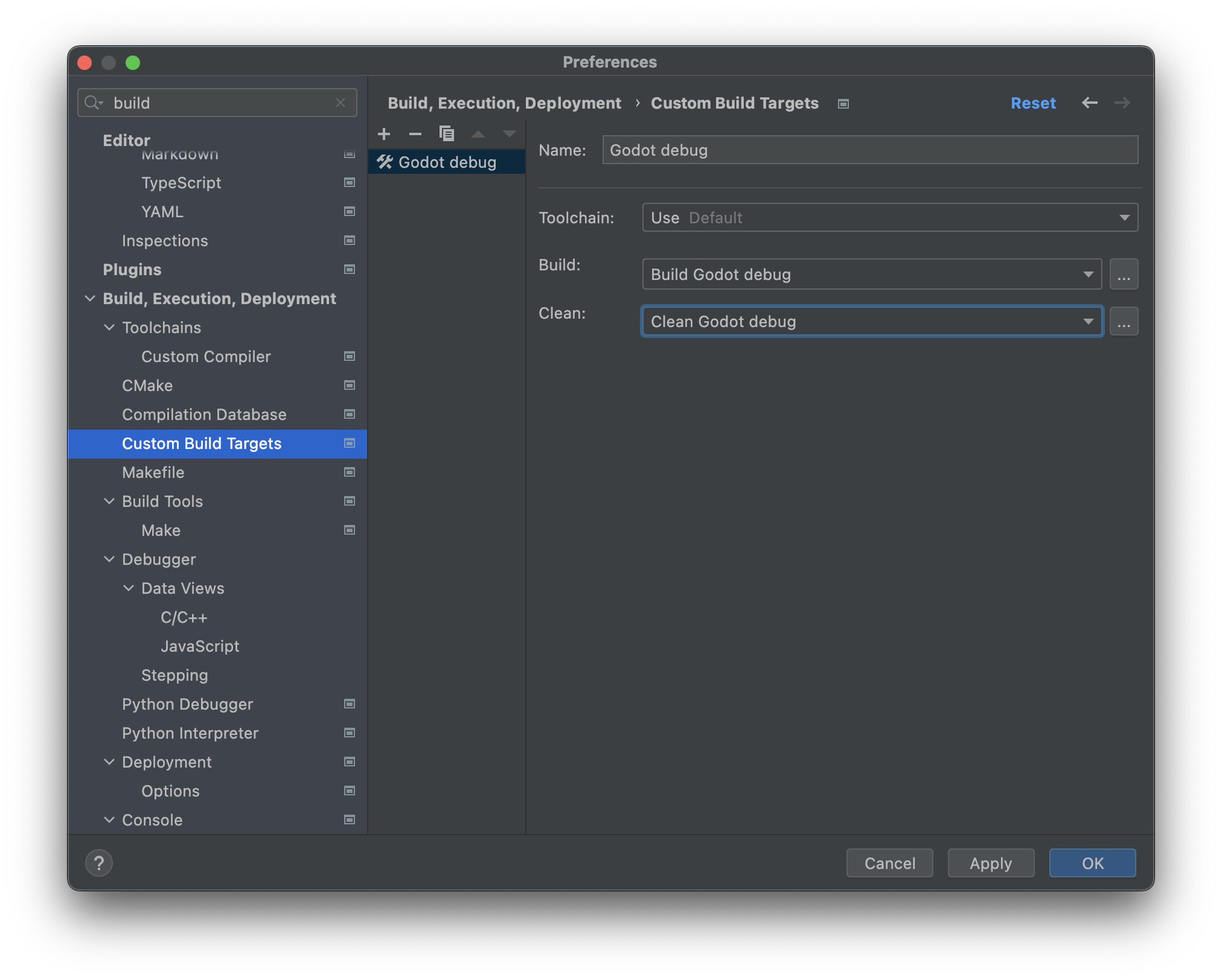

Close the External Tools dialog. In the Custom Build Target dialog for the custom Godot debug build target, select the Build Godot debug tool from the Build select box, and select the Clean Godot debug tool from the Clean select box. Click OK to create the custom build target.

In the main IDE window, click Add Configuration.

../../../_images/clion-add-configuration.png

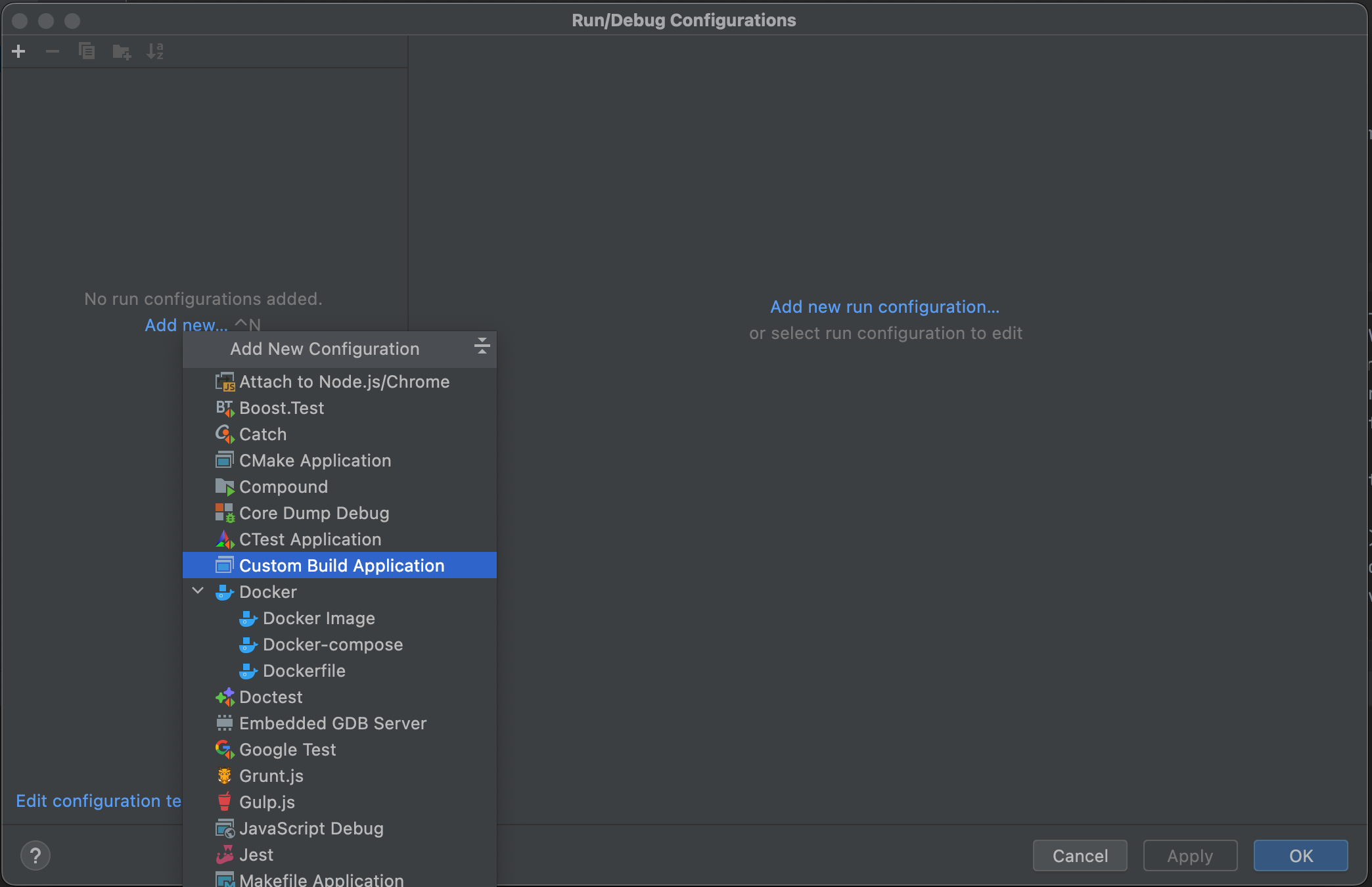

In the Run/Debug Configuration dialog, click Add new..., then select Custom Build Application to create a new custom run/debug configuration.

../../../_images/clion-add-custom-build-application.png

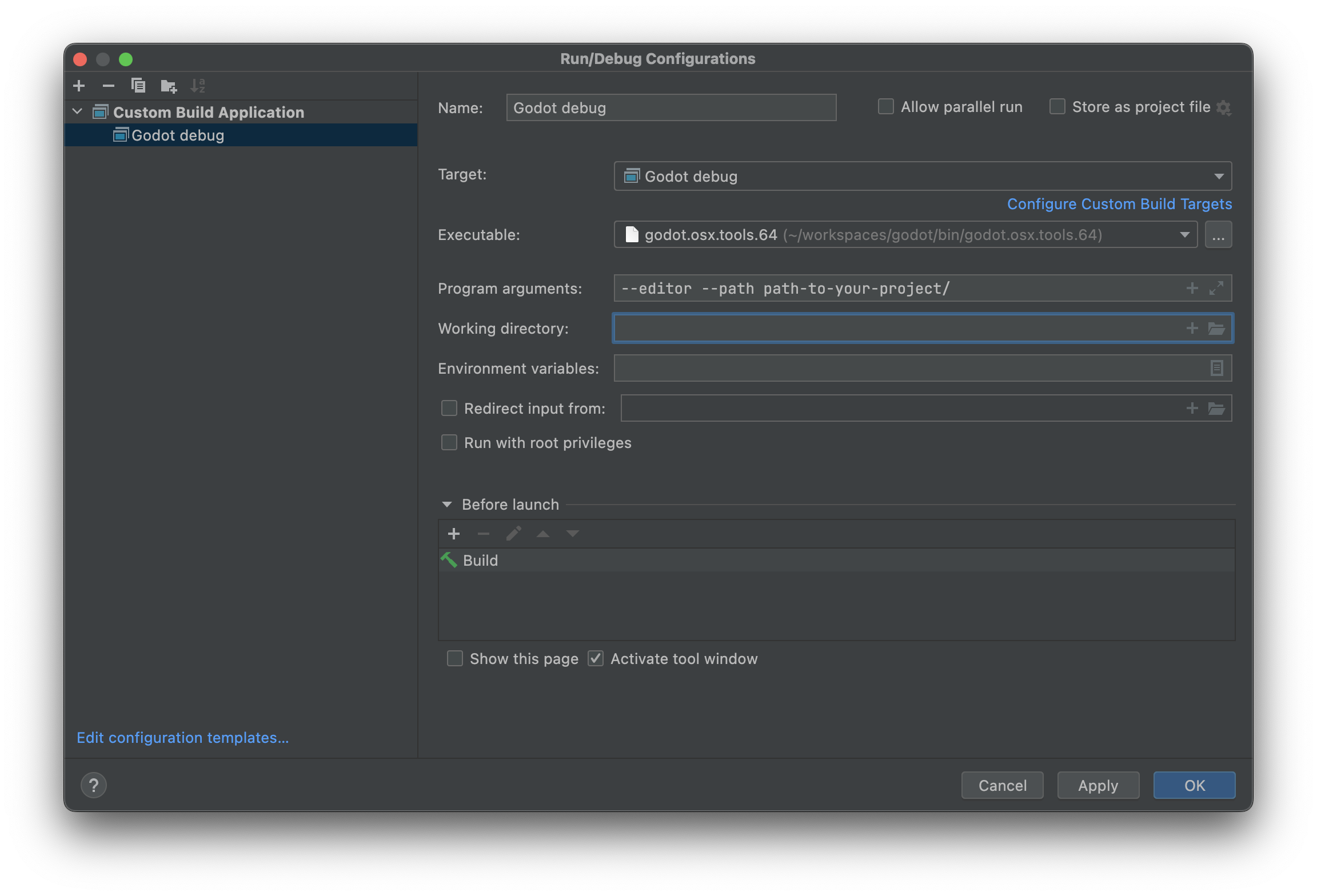

Give the run/debug configuration a name, e.g. Godot debug, select the Godot debug custom build target as the Target. Select the Godot executable in the bin/ folder as the Executable, and set the Program arguments to --editor --path path-to-your-project/, where path-to-your-project/ should be a path pointing to an existing Godot project. If you omit the --path argument, you will only be able to debug the Godot Project Manager window. Click OK to create the run/debug configuration.
